Overview

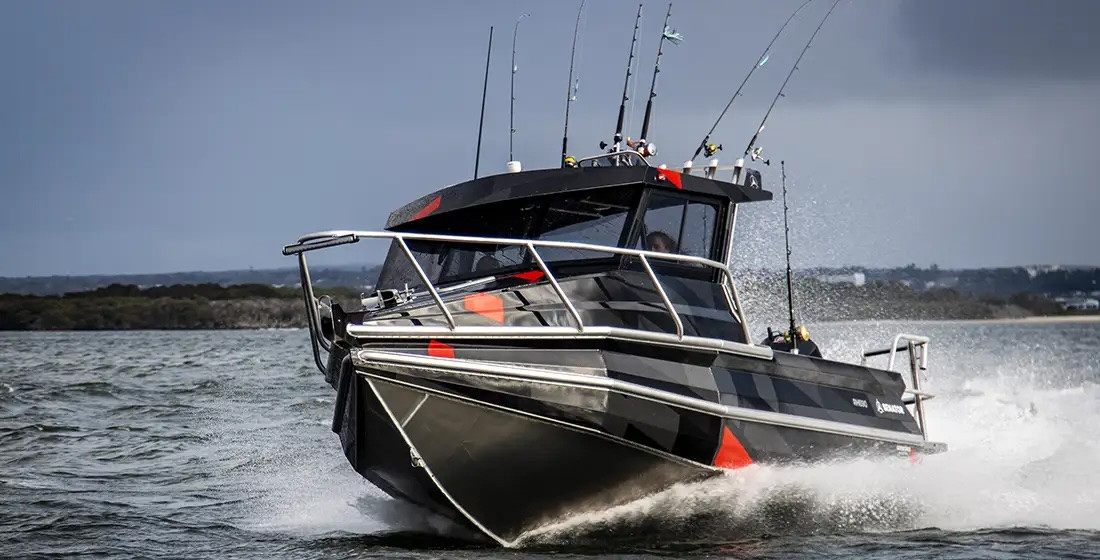

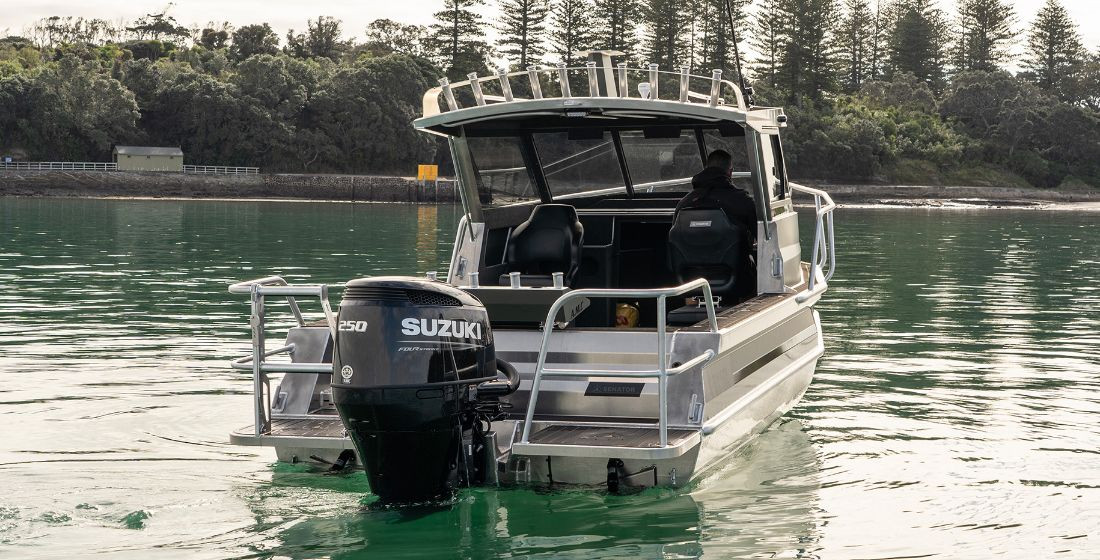

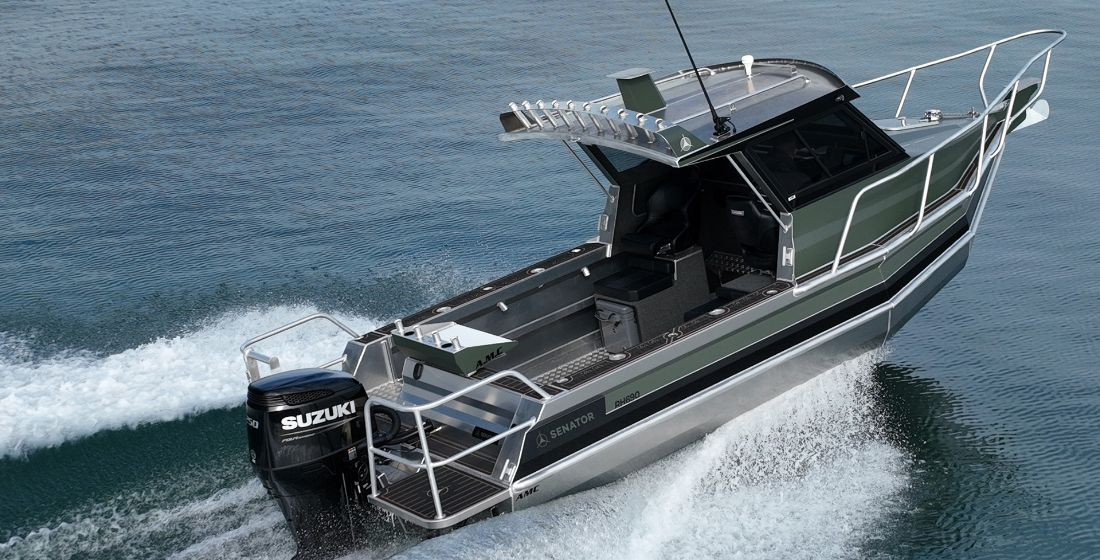

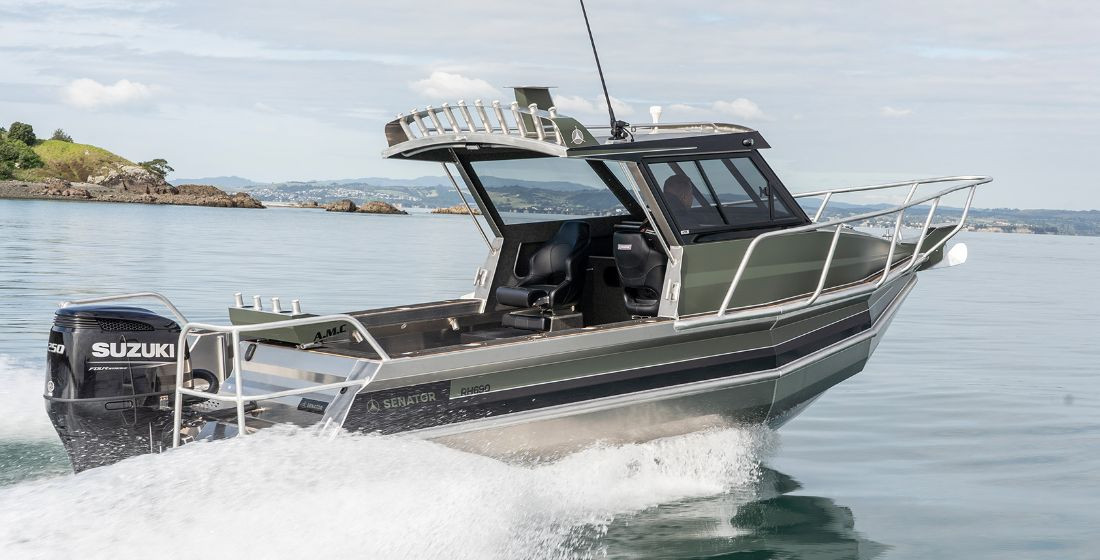

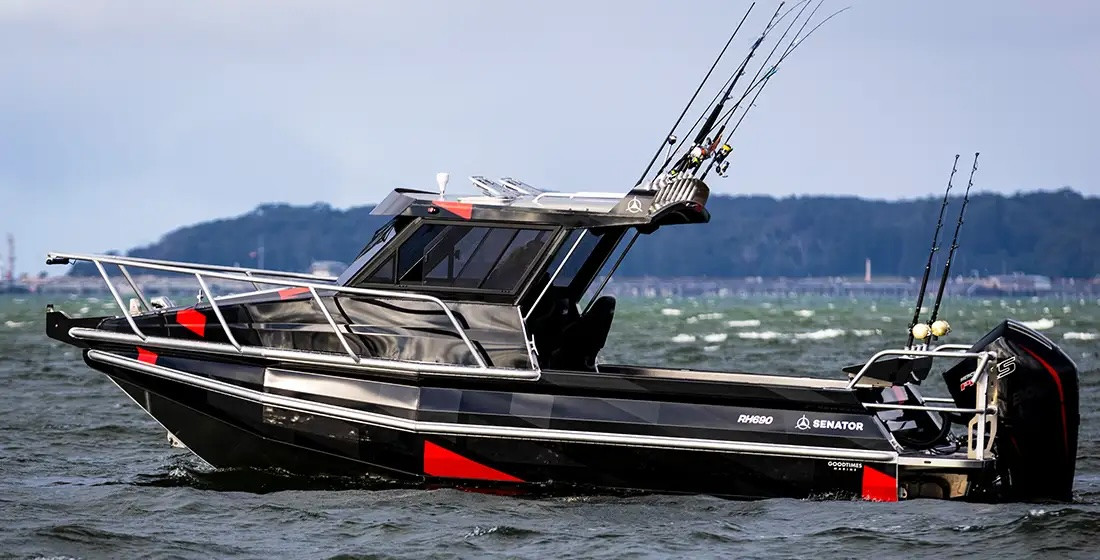

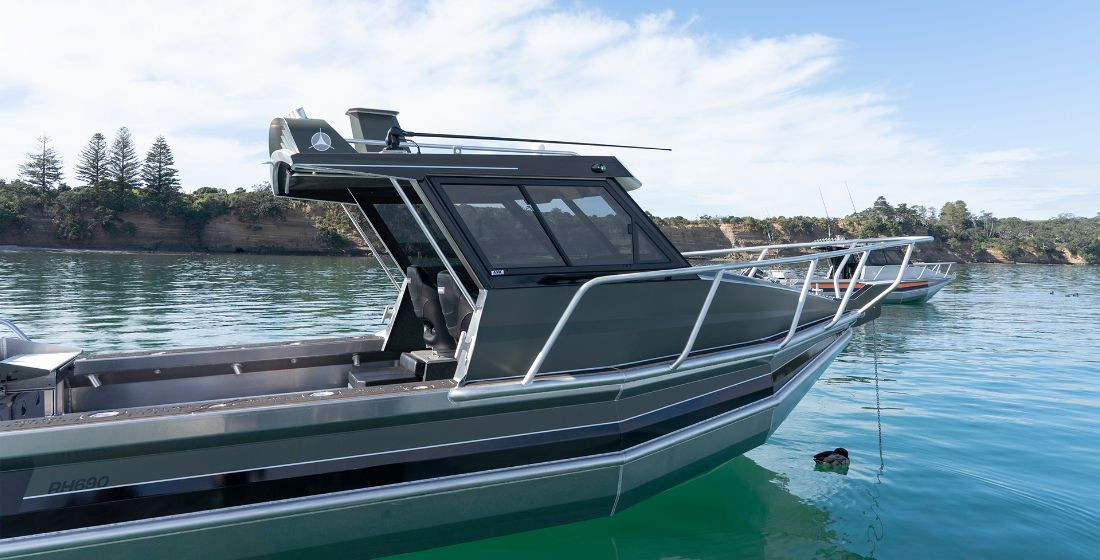

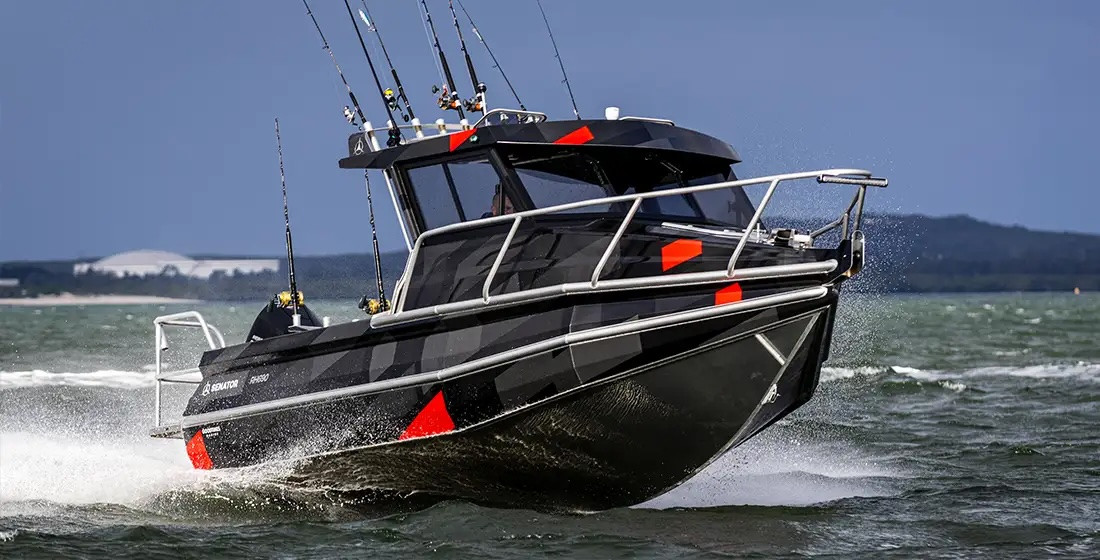

When size and capability matter, the RH 690 delivers. Built with heavy-duty construction and a generous 2.5m beam, this is a boat designed to give serious divers and fishos the room they need — nearly two metres of interior deck width, full-length bunks, and the option of spacious lock-up forward and main cabins. Storage is equally impressive, with large underfloor compartments and dive bottle shelves built directly into the pontoons at floor level as standard. With up to 250hp on tap — plus twin motor options available — offshore fishing grounds are well within reach. And at around 2,000kg on a tandem trailer, the RH 690 gives you plenty of tow vehicle flexibility without sacrificing any of that big-boat capability.
Q1136 Base package includes:
- Yamaha F225XCB Four Stroke V6 Outboard
- Yamaha 6X9 Digital Throttle Binnacle Control Box
- Yamaha CL5 Touchscreen Gauge
- Yamaha EKS Electric Key Switch
- Yamaha Stainless Steel Propeller
- Hydraulic Steering
- Redco Alloy TA730T-EH 3500kg Tandem Trailer
- Alloy Wheels
- Spare Alloy Wheel
- Dual Marine Batteries & Isolator
- Marine Technician Water Tested
- 12 Months QLD or NSW Registration
Factory options included above standard:
- Large Typhoon Baitboard 800x500 with two locking pins
- Port Live Bait Tank (incl. window, pump & plumbing)
- Bow rail - 1020 style
- Half upper bump rail
- Foam inserted into Pontoons
- Float Switch Fitted to Bilge Pump
- Vinyl Wrap — Upper Hull (cabin + hull above bump rail, incl. transom)
- Sliding Both Ways Port & Starboard
Measurements and Capacities
- Approx towing weight: from 2000kg
- Beam external: 2.49m
- Beam internal: 1.99m
- Boat length: 6.93m
- Deck Area: 4.60m2 (Width 2.00m x Length 2.30m)
- Height on trailer: 3m
- Hull thickness: 6mm
- Length on trailer: 8.7m
- Max Engine: 300kgs
- Max HP: 300hp
- Max Persons: 7 = 630kgs
- Overall length: 7.13m
- Pontoon thickness: 3mm
- Standard fuel tank: 315Ltrs
- Transom: 635mm
- Transom dead rise: 18°
- Treadplate floor: 4mm
- Width on trailer: 2.50m
Standard Features, Seating, and Safety
- 1100mm Cabin with +200mm Roof Extension (Standard)
- 1500 Seat & Squab Set ×2
- 200mm Roof Extension (Standard)
- 5 Year Senator Factory Hull Warranty
- 5× Pressure Tested & Sealed Buoyancy Chambers
- Anchor Locker
- Auto Capstan Ready

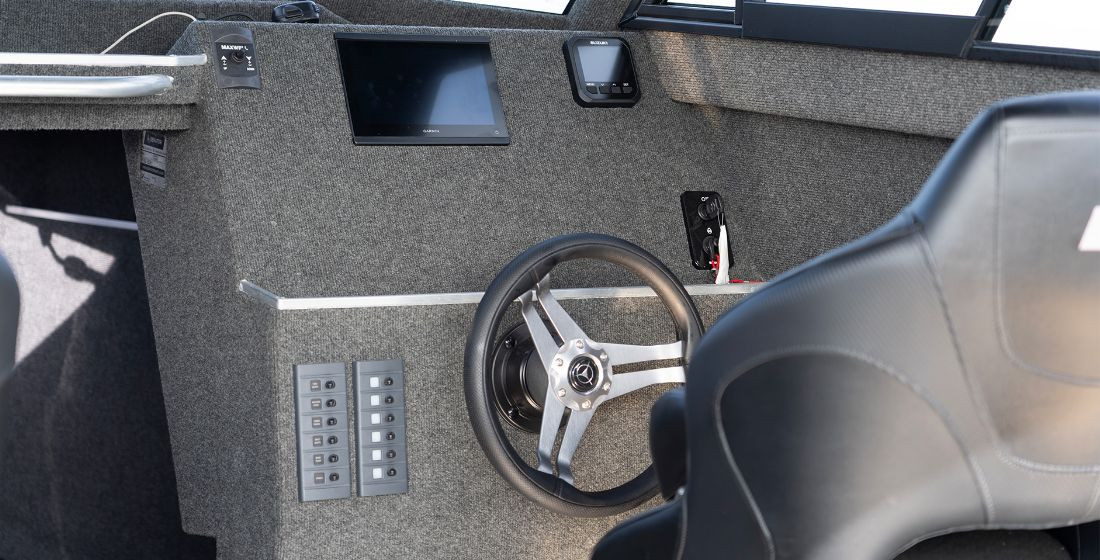

- BEP 6-Way Panel / Loom and Fuses
- Bilge Pump
- Bollard & Cleats
- Bow Rail – Hard Top Style
- Cabin Hatch
- Checkerplate Flooring
- Deck Wash Pickup
- Duckboard Extension +200mm (Standard)

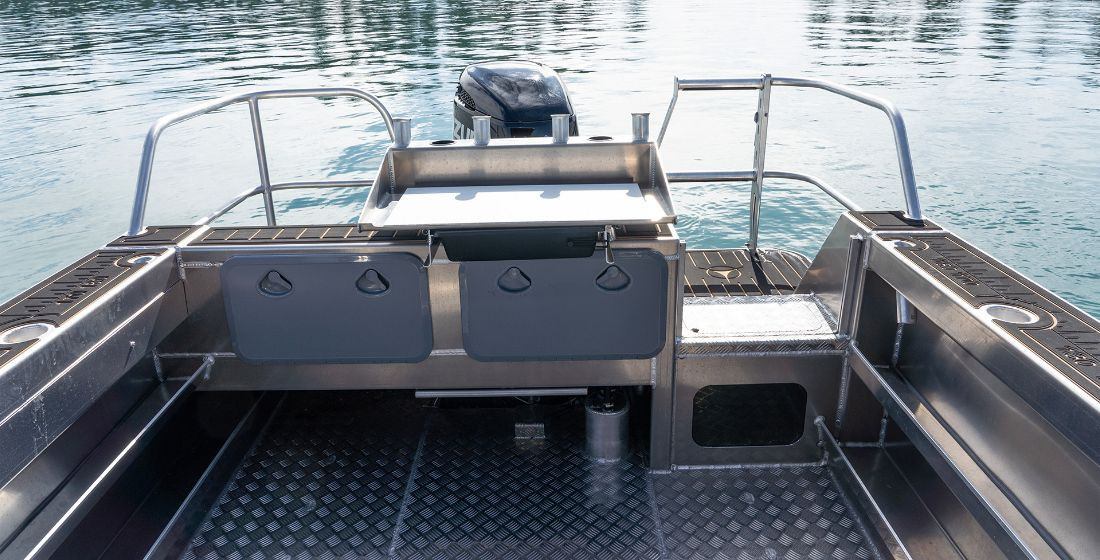

- Enclosed Rear Transom with Hatches
- Fairlead & Roller
- Fish Bins Under Floor ×2
- Flush Single Rung Ladder with Grab Rails
- Forward Cabin Bunks & Squabs
- Fuel Tank Under Floor with Sender (380L Standard)
- Fully Lined Cabin & Hardtop
- Gunwale Drink Holders ×4
- Heavy Duty Non-Feedback Steering
- Hinged Fish Bin Lids
- Hotshot 3 Washdown Pump Installed (Standard)

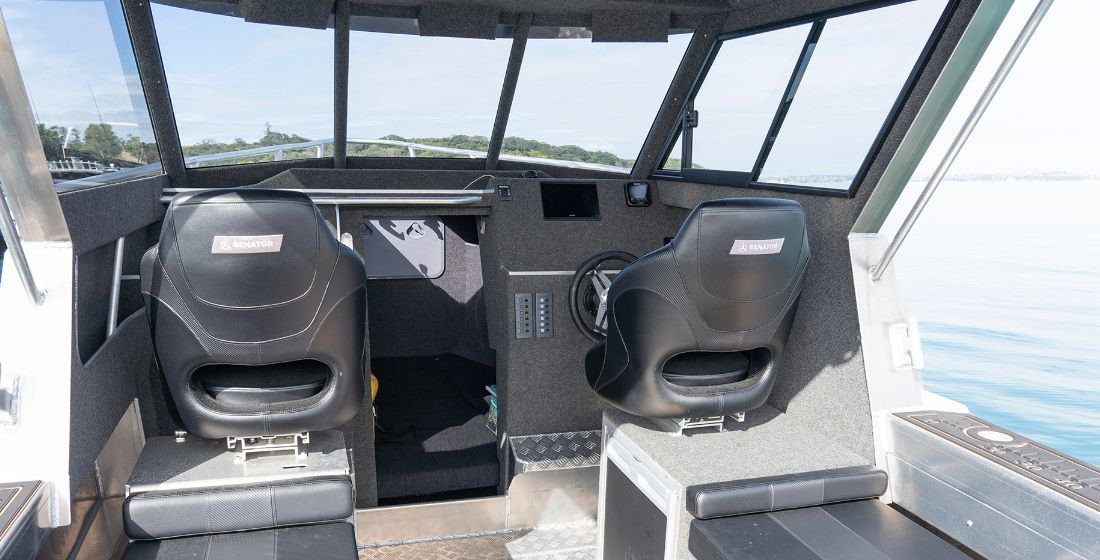

- King & Queen Seats ×2
- LED Navigation & Anchor Lights
- Marine Grade Alloy Plate
- Outrigger Stiffener Plates (Standard)
- Port Walk-Through Transom with Gate (Standard)
- Reserve Buoyancy
- Rocket Launcher
- Rod Holders ×6
- Second Shelf in Pontoons
- Senator Fuel Breather System
- Swivel Slider Included with Every Seat (Type Varies by Seat)
- Tinted Safety Glass
- Transducer Mount Plate
- Trim Tabs Mount Plate
- Twin Duckboards
- U-Dek® Walk Around
- Variety of Grab Rails
Do You Offer Financing?
Yes! We offer customers with tailored, Yamaha finance and Yamaha insurance solutions to make getting on the water even easier. Drop your finance enquiry here
Can I Customise My New Boat to Suit My Needs?
Absolutely. From engine upgrades to advanced electronics and everything in between, we’re happy to build a package that’s perfectly suited to your lifestyle and needs.
Why Buy This Boat Here?
Unlike many dealers that simply list boats online, we’ve been proudly established for decades, building success on a foundation of exceptional customer service and reliability. We’re proud to be recognised in Yamaha’s prestigious Elite 20, an award that highlights our consistent performance, dedication to customer service, and commitment to excellence across Yamaha outboards, parts, finance, and insurance.
As one of largest marine dealerships on the Gold Coast, conveniently located just off the M1 and within easy reach of Brisbane and Northern NSW, we’re your premier destination for Yamaha Outboards, Stacer, Formosa, Yellowfin Plate Boats, Extreme Boats, and Senator. Alongside our new boat range, we also stock a wide selection of quality pre-owned vessels — and we can arrange Australia-wide transport for your convenience.
Yamaha Finance and insurance options are available to approved customers.
Please call Gold Coast Boating Centre to discuss this package further. We are located at 64 Kortum Drive, Burleigh Heads QLD - 07 5576 7388
While every effort is made to ensure accurate descriptions and pricing, occasional errors may occur. Specifications, features, and pricing are subject to change without notice.
