Overview

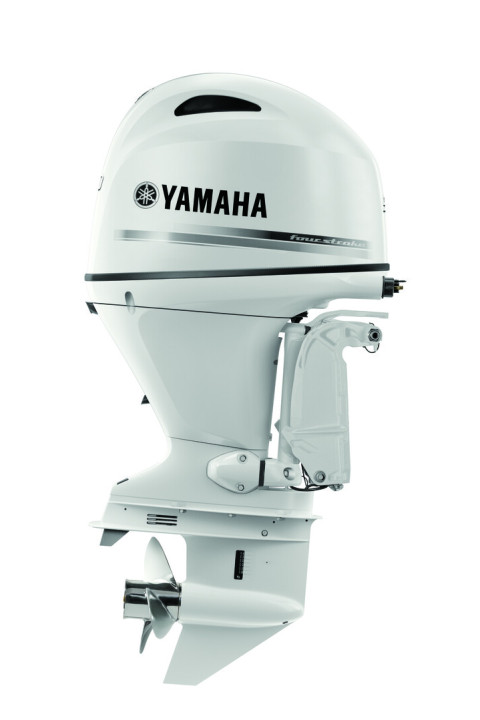

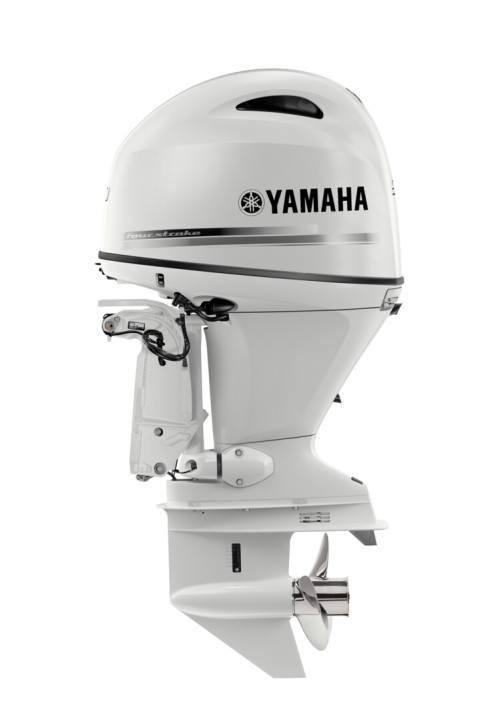

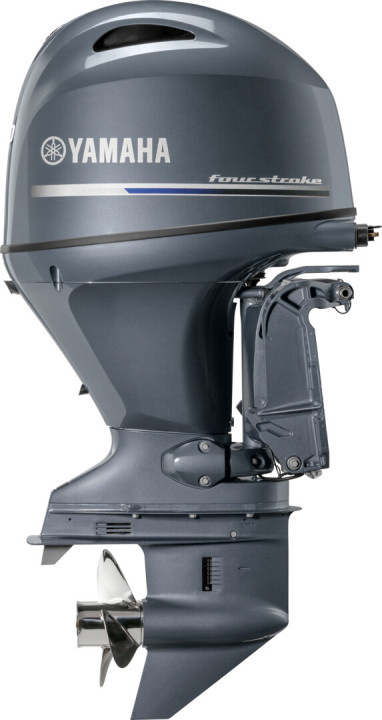

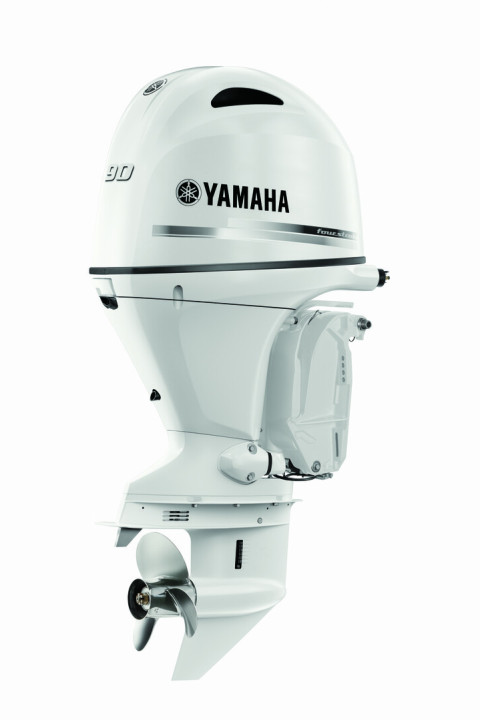

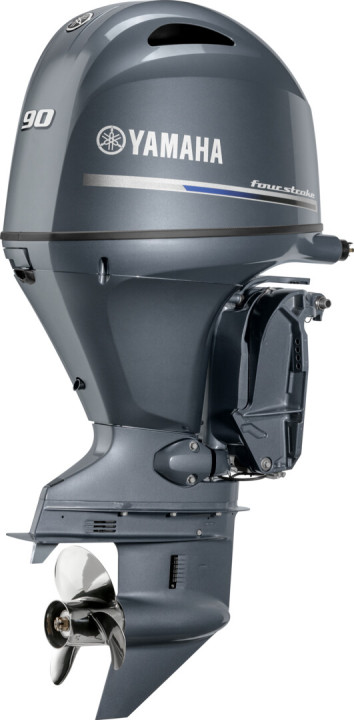

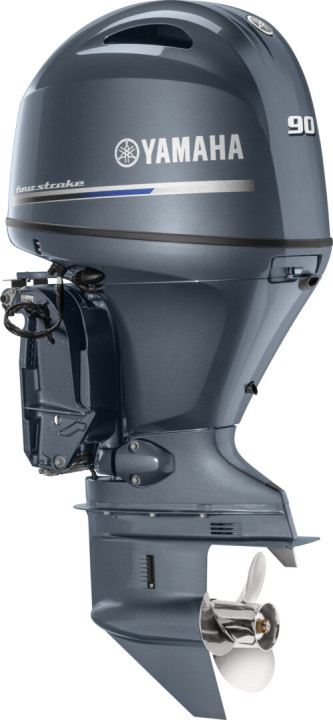

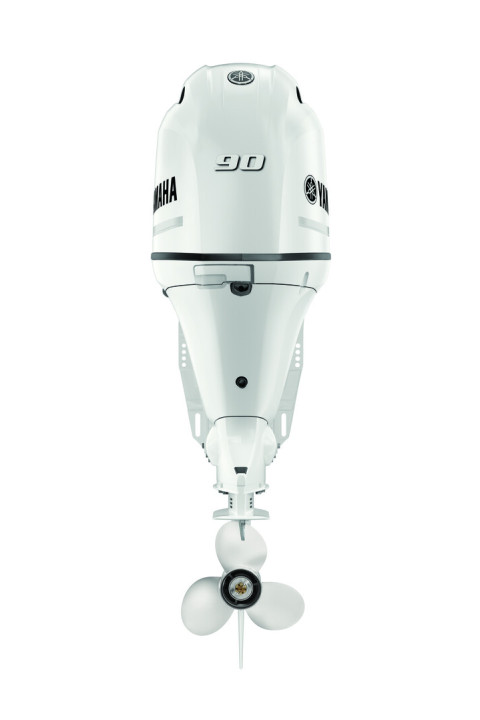

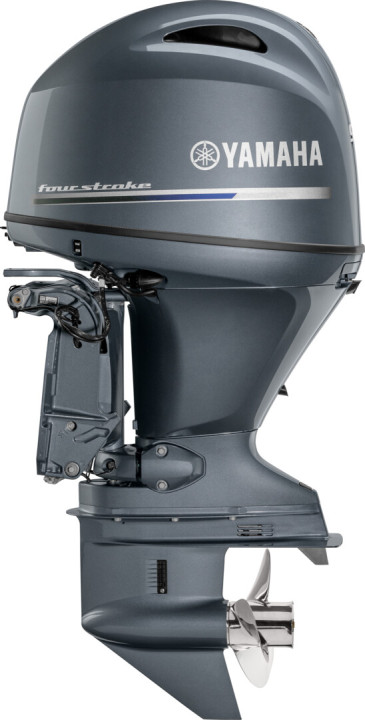

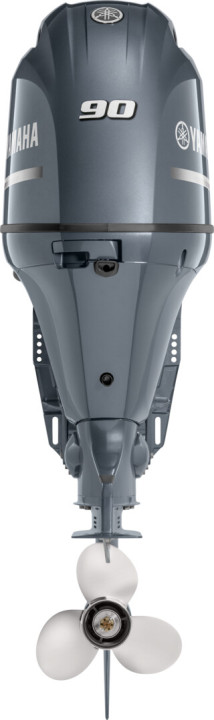

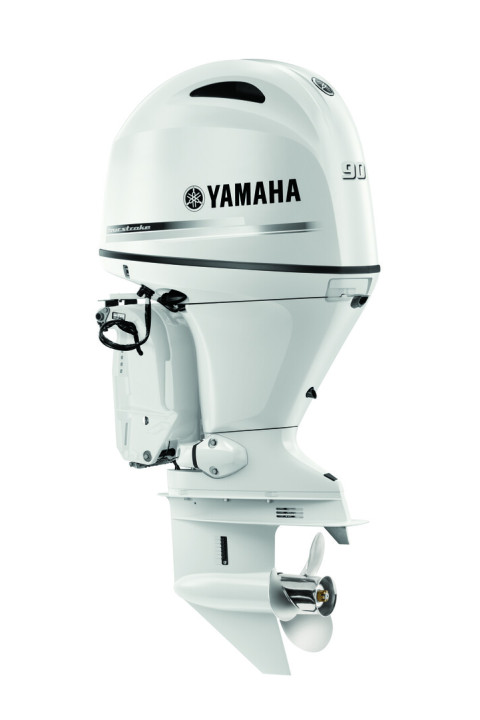

The next-generation F90 is a direct-evolution of the previous 1.5-litre model, delivering increased fuel-efficiency, reduced weight and improved performance. Filling an important place in Yamaha’s class-leading mid-range line-up, the new F90 delivers the perfect power option for the large number of Aussie-built boats that have a maximum hull rating of 90 horsepower. The four-cylinder, 16-valve, SOHC 1.8L marine engine, is not only 10KGs lighter but an increase in displacement over the previous generation 1.5L engine aids in a richer torque band.
Enquiry form
Enquiry form
Specifications
Engine Type
4-Stroke, 16 Valve SOHC In-line 4 Cylinder
Bore x Stroke (mm)
81 X 88.9
Displacement (cc)
1832.0
Recommended Maximum RPM
5000 - 6000
Fuel Management
EFI
Ignition
TCI
Lubrication System
Wet sump
Alternator Output
12V - 35A with Rectifier Regulator
Gear Ratio
2.15 : 1
Starter System
Electric
Operation Method
Mechanical Control (Optional Tiller Handle Available)
Trim and Tilt Method
Power Trim & Tilt
Digital Gauges
Optional
Command Link Gauges
Optional
Transom Height (mm)
L: 516 [20.3] | X: 643 [25.3]
Dry Weight (kg)
L: 162 | X: 166
